Good description of exhaust system muffler pipe butt joint clamp
Exhaust pipe butt joint band clamp is using high- strength fasteners providing real sealing capability with leak free and provides 360 degree full clamping area to generate overall sealing force without distorting exhaust pipe, exhaust muffler ends and exhaust tubing in exhaust sytem connection.
An effective alternative for joining exhaust system components without the need for pipe sizing or slotting. Provides a serviceable joint — no permanent distortion of exhaust members.

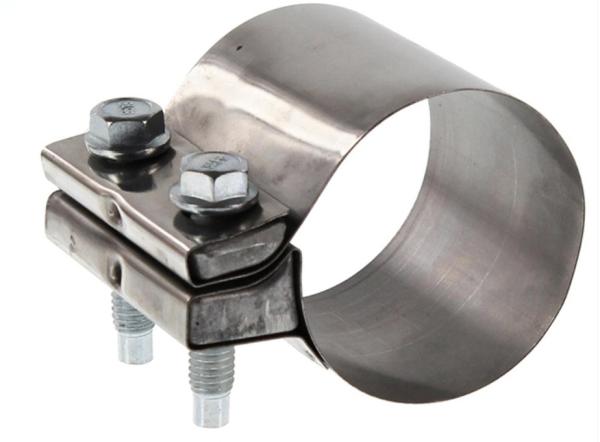

| T304 Stainless Steel SS Butt Joint Band Exhaust Clamp For exhaust system muffler exhaust pipe |
| Available sizes | 2.0" 2.25" 2.5" 3.0" 4.0" 5" |
| Materials of band | Stainless steel 304 |
| Fasterners Specs | Galvanized steel grade 8.8 / 9.8 / 10.9 /12.9 are all available |
| Application | exhaust pipe / muffler / catalytic converters connection |
| Features: | - Stainless steel material, not easy to rust.
- corrosion resistance.Joint your exhaust tubing together quickly without welding.
- Arc curved face,capability prevent exhaust gas and noise leaks. Exhaust band clamp is removable and reusable.
- he reaction block provides a full 360 °equal distribution of stretching forces, prohipiting pipe distortion while complesing a seal round the joined exhaust components.
|
| Main market | USA, Canada, Europe etc. |
Available sizes of exhaust pipe butt joint band clamp
| MODEL NUMBER | Dia(mm) | Dia(in) |
| YP-EXFBC020 | 51 | 2" |
| YP-EXFBC225 | 57 | 2.25" |
| YP-EXFBC250 | 64 | 2.5“ |
| YP-EXFBC275 | 70 | 2.75” |
| YP-EXFBC300 | 76 | 3“ |
| YP-EXFBC350 | 89 | 3.5” |
| YP-EXFBC400 | 102 | 4“ |
| YP-EXFBC450 | 114 | 4.5” |
| YP-EXFBC500 | 127 | 5“ |
Packaging of exhaut pipe butt joint band clamp:
Plastic bag + carton (customized carton as request)
Advantages of butt joint band clamp
- Butt joint band clamps is a simple, effective way to connect exhaust system components such as pipes, mufflers and catalytic converters. Unique seal and high clamp loads are provided without distorting your exhaust components, allowing the flexibility to disassemble for service.
- Distributes the clamping force evenly over the entire 360° to prevent leaks and control material distortion. Easy and less time consuming to install or remove with one bolt. Features T-304 band stainless steel and aluminized steel hardware.
- The band clamp is a wide strap of metal, typically stainless, which wraps around the exhaust pipe joint. Our product is a pre-formed ring, also, it is now more commonly used in higher-end aftermarket exhaust systems using slip-fit, because they are relatively cheap, and are reusable without damaging the pipes.
-
Application of butt joint band clamp
- Perfect for Catback Exhausts, Mufflers, Catalytic converter, Downpipes, Headers, Manifolds.
- Cases No Damaging Distortion to Pipe or Flex Hose.
About us:
We are speicalized in exhaust pipe clamp not limted to v band clamp, but also Butt jointed clamp, lap jointed clamp, U bolt clamp, single bolt band clamp, heavy duty hose clamp and OEM mounting bracket. Our main market: USA, Europe, The Middle East, Southeast Asia, and Russia. Our products are sold worldwide with strict control over materials. We strictly control the quality of our products in the production process. Our responsibility for our products is our responsibility to our customers.
Contact way:
Any requirements or question,welcome to "Send" us an e-mail. It's our great honor to do services for you! You also can get the FREE SAMPLE for test.
