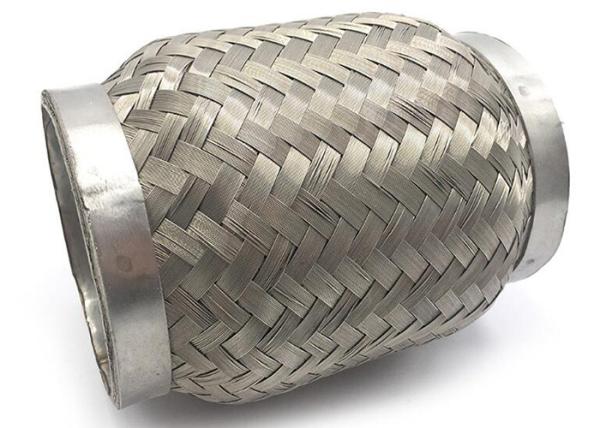

SS409 76mm X 203mm Flexible Exhaust Bellows

Place of Origin : China

MOQ : 1pc

Price : USD$ 1.5--8.99 /PC

Payment Terms : L/C, T/T, Western Union

Supply Ability : 80000PCS/MONTH

Delivery Time : 10-14 DAYS

Packaging Details : carton

Other Name : Stainless Steel Exhaust Flexible Bellow , Flex Exhaust Bellows

Fitment : Universal

Type : Interlock Braided Exhaust Pipe

Size : 76mm x 203mm , 51x152mm

Apply for : Vehicle Exhaust System

MOQ : 1pc

Delivery time : 5 days if stock, 10-20 if no stock

Warranty : 1 Year

Overall Length : 4”-12”

Finish : Plain

Contact Now

High Temperature Resistance Exhaust Flexible Bellow , Flex Exhaust Bellows in Stainless Steel

The flexible exhaust pipe bellow is a flex. piece of pipe that allows the exhaust system some flexibility. It is installed in the exhaust pipe between the engine exhaust manifold and the muffler, so that the entire exhaust system is flexibly coupled, thereby reducing vibration and noise, facilitating installation and extending the life of the exhaust muffler system.

Features and Benefits:

1 . Easily installation. There is no need to remove the whole exhaust system. Only to cut out the failed exhaust flex pipe and install a new spare part using the welding method or clumps instead
2 . Cost-effective. Malfunctioning exhaust flex pipe can be easily replaced with a new one without the necessity to purchase the entire exhaust unit
3 . Applicable to universal Exhaust pipe
4 . Manufactured from stainless steel for durability and corrosion resistance
5 . Many styles and sizes available for your installation needs
6 . 1 Year Warranty

Quick Information:

Product Name	Stainless Steel Exhaust Muffler Flexible Pipe
Material	Stainless Steel 409 / 304 / 316, Aluminum
Quality	Genuine / OEM
Packing	Bubble bag, Wooden Case, Neutral packing or negotiated
MOQ	1 pc
Size / Inner Diameter	1.5"-6" (1.5” / 1.75” / 2.0” / 2.25” / 2.5” / 3.0” / 3.5” / 4.0” )
Length	4” - 12”
Wall Thickness	1.0mm , 1.2mm
Color	Silver
Price Term	EXW , FOB , CIF , C&F
Car Model	Universal
Application / Usage	Muffler , Car Exhaust System , Turbos , Waste-gates , Blow-off Valves
Delivery time	5 days if stock , 10-20 if no stock as per quantity
Advantage	High flexibility with long life For high temperature Anti-corrosion Absorb noise and decouple vibration
Warranty	6 months
Sample	Available

Following common 4 types of exhaust flexible pipe , customized sizes are available on us too.

1.Exhaust Flexible Pipe I
an outer braid + an inner bellow, such type is for light use.
2. Exhaust Flexible Pipe II
an outer braid + bellows in the middle + an inner braid, such type offers more flexibility, for medium use, has longer life
3. Exhaust Flexible Pipe III
Braided Flexible pipe with welded nipples
4. Exhaust Flexible bellow IV (bellow)
an outer braid + a interlock tube with bellows in the middle, for heavy use. The interlock pipe is used to reduce vibration and noise, and make the pipe most longest life.

SS409 76mm X 203mm Flexible Exhaust Bellows

Warehouse and Packing:

Specifications:

1-3/4(45mm)	4”(102mm)	2-1/2”(63.5)	4”(102mm)	43mm	120mm
	6”(152mm)		6”(152mm)		165mm
	8”(203mm)		8”(203mm)		180mm
	9”(230mm)		9”(230mm)	50mm	120mm
	10”(254mm)		10”(254mm)		165mm
	11”(280mm)		11”(280mm)	54.5mm	120mm
	12”(305mm)		12”(305mm)		150mm
2”(51mm)	4”(102mm)	3”(76.2mm)	4”(102mm)		180mm
	6”(152mm)		6”(152mm)		200mm
	8”(203mm)		8”(203mm)		250mm
	9”(230mm)		9”(230mm)	60mm	160mm
	10”(254mm)		10”(254mm)		200mm
	11”(280mm)		11”(280mm)		240mm
	12”(305mm)		12”(305mm)	65mm	150mm
2-1/4”(57.2mm)	4”(102mm)	3-1/2”(89mm)	6”(152mm)		200mm
	6”(152mm)		8”(203mm)	70mm	100mm
	8”(203mm)		9”(230mm)		120mm
	9”(230mm)		10”(254mm)		150mm
	10”(254mm)		12”(305mm)		200mm
	11”(280mm)	Other Sizes are available upon request. ID32, ID36, ID38, ID40,ID46,ID48,ID115,ID125...
	12”(305mm)
