Product description:

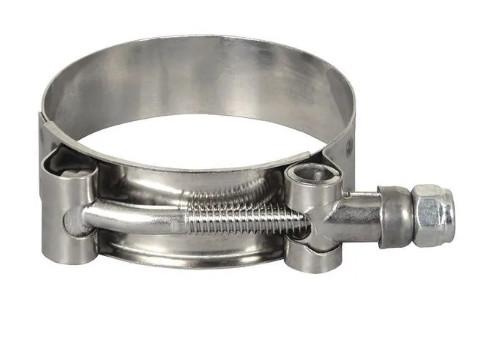

316 stainless steel T Bolt hose clamps perform well in saltwater applications and offer better corrosion resistance than the standard 304 T-bolt band clamp; therefore 316 tbolt clamps are commonly used to provide leak-proof connections on marine engine and exhaust systems. Professionals also utilize the high strength 316 T Bolt clamps in applications such as water treatment and sewage systems, military, filter bags, telecommunication devices, sanitary systems, food and pharmaceutical processing equipment.
Technical Specification
- Perform well in saltwater applications and offer better corrosion resistance than the standard 304 T-bolt band clamp
- Effective Size Range: 6" - 6.31" (152mm-160mm)
- 100% Marine Grade 316 Stainless Steel Band, Bolt and Nut
- High strength with superior welded construction
- 3/4" (19mm) band width with floating bridge
- Band thickness: 0.6mm
- Maximum Torque Spec 75 in. lbs
Installation:
Proper measurement is extremely important when it comes to selecting the proper size for your application. Please choose your T-Bolt Clamp based on your SILICONE HOSE ID SIZE. For example, if your applications requires a 1.750" ID Silicone Hose the this 1.750" T-Bolt Clamp is a suitable clamp for your application.
|
The advantage of T-bolt clamp
|
| 1 |
The high clamping strength helps prevent leakage in heavy duty application
|
| 2 |
The smooth inner band prevent cut and gouge failures for convetional hose
|
| 3 |
Clamp can cause on a softer hose
|
| 4 |
The curved carbon steel plated bolt makes an easy installation and holds your application
|
| 5
|
The clamp is ideal for Buses, Trucks, industrial machinery, off-rold and other heavy duty equipment
|
Packing and delivery:
Package method:Separate carton for each, big carton outside or as clients's request
Delivery time:in 3 days if stocks available, new production time depends on ordered quantity
Payment terms:T/T (30% as deposit, balance shall be paid against the copy of bill.)
Shipping terms: FOB, CIF, CNF DDP etc.
Related clamps:
V band clamp, Butt jointed clamp, Sleeve connector, U bolt clamp, Lap jointed clamp, mounting bracket and straps, vertical stack rain cap etc.
Welcome OEM clamp inquiry.
